Home > Accessories > Beelink Multi-Functional EX Pro Docking Station

Free Shipping

30-Day Risk-Free Trial

3 Year Warranty

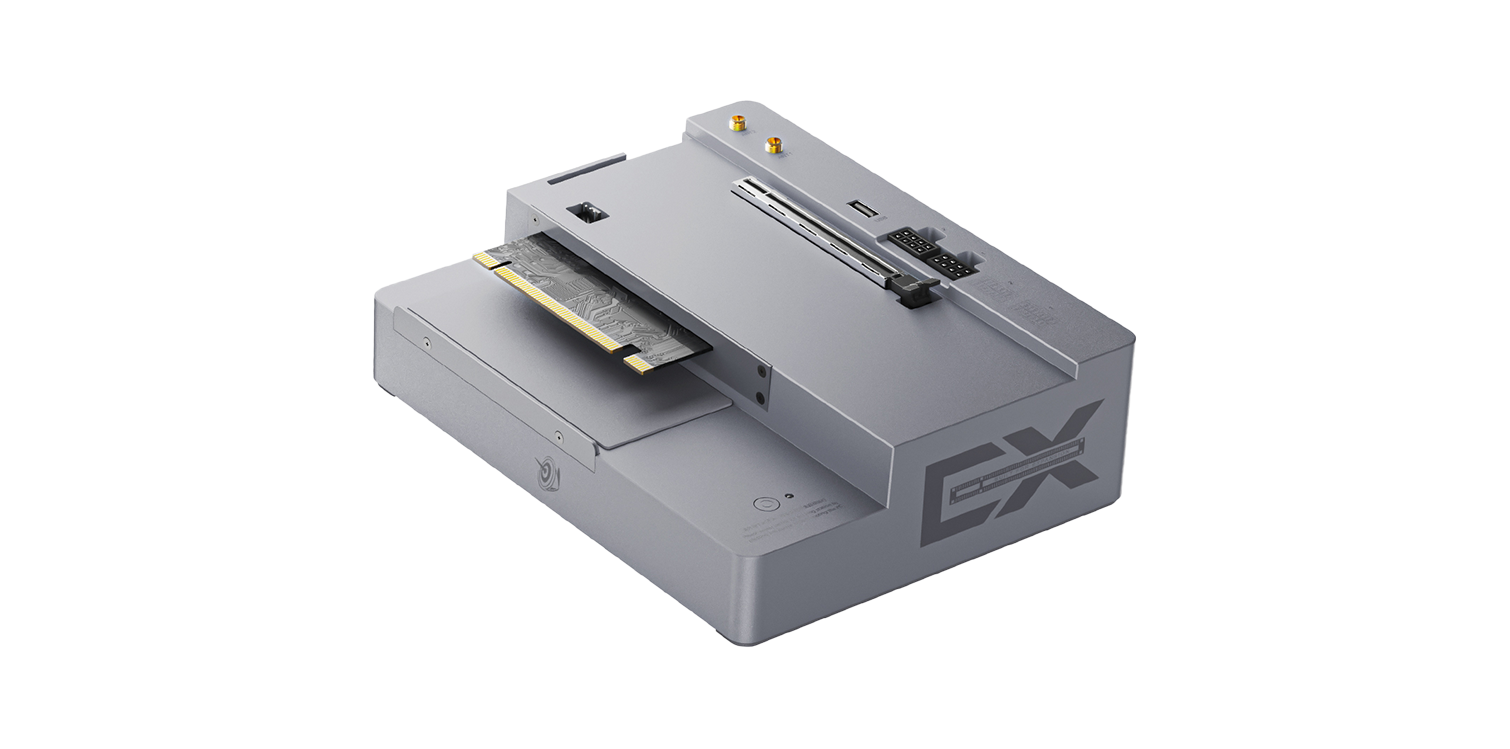

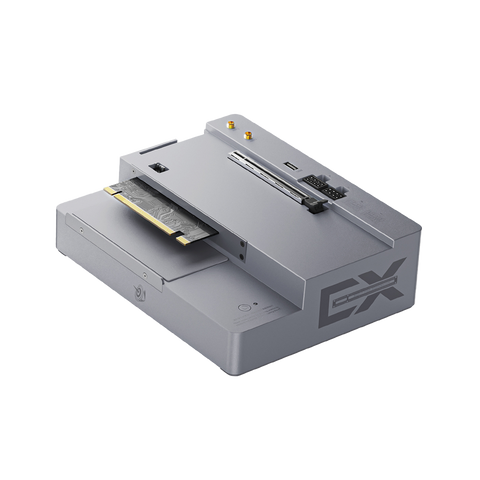

Beelink Multi-Functional EX Pro Docking Station

Beelink Multi-Functional EX Pro Docking Station

€159,00 €159,00
Power Adapter Option: EU EU
QTY

Functional Features

  • 📢 【Shipping Note】 Pre-order Shipping time is approximately 35 days.

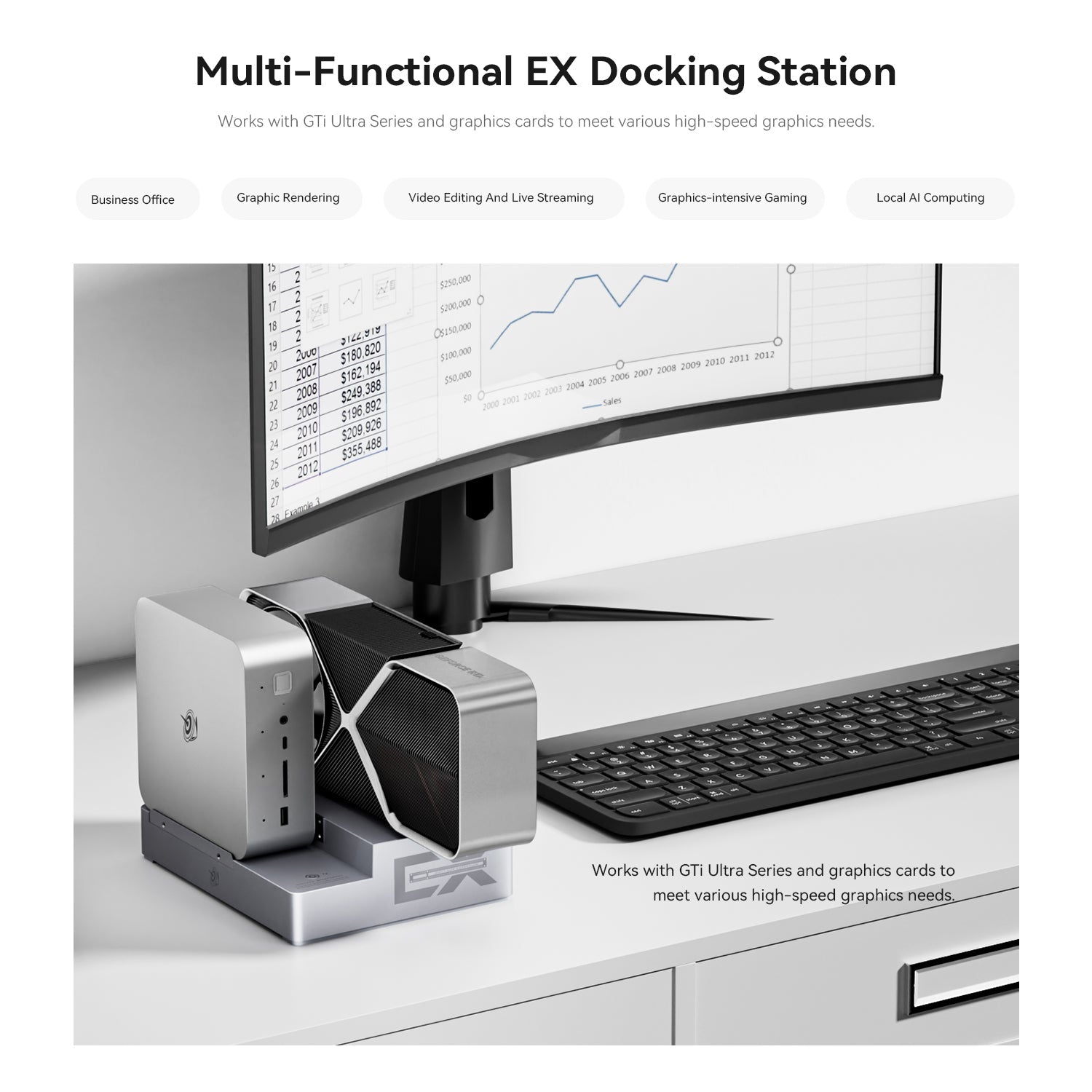

  • 🏆【Beelink Multi-Functional EX Pro Docking Station For Discrete Graphics Cards Expansion】--- Seamlessly integrates with the GTi Ultra Series Beelink PCs, including the GTi12 & 13 (supporting PCIe 4.0) and GTi14 & 15 (supporting PCIe 5.0), to connect with discrete graphics cards for various high-performance needs. Its open design accommodates graphics cards of any size and ensures perfect compatibility with models from both AMD and NVIDIA.

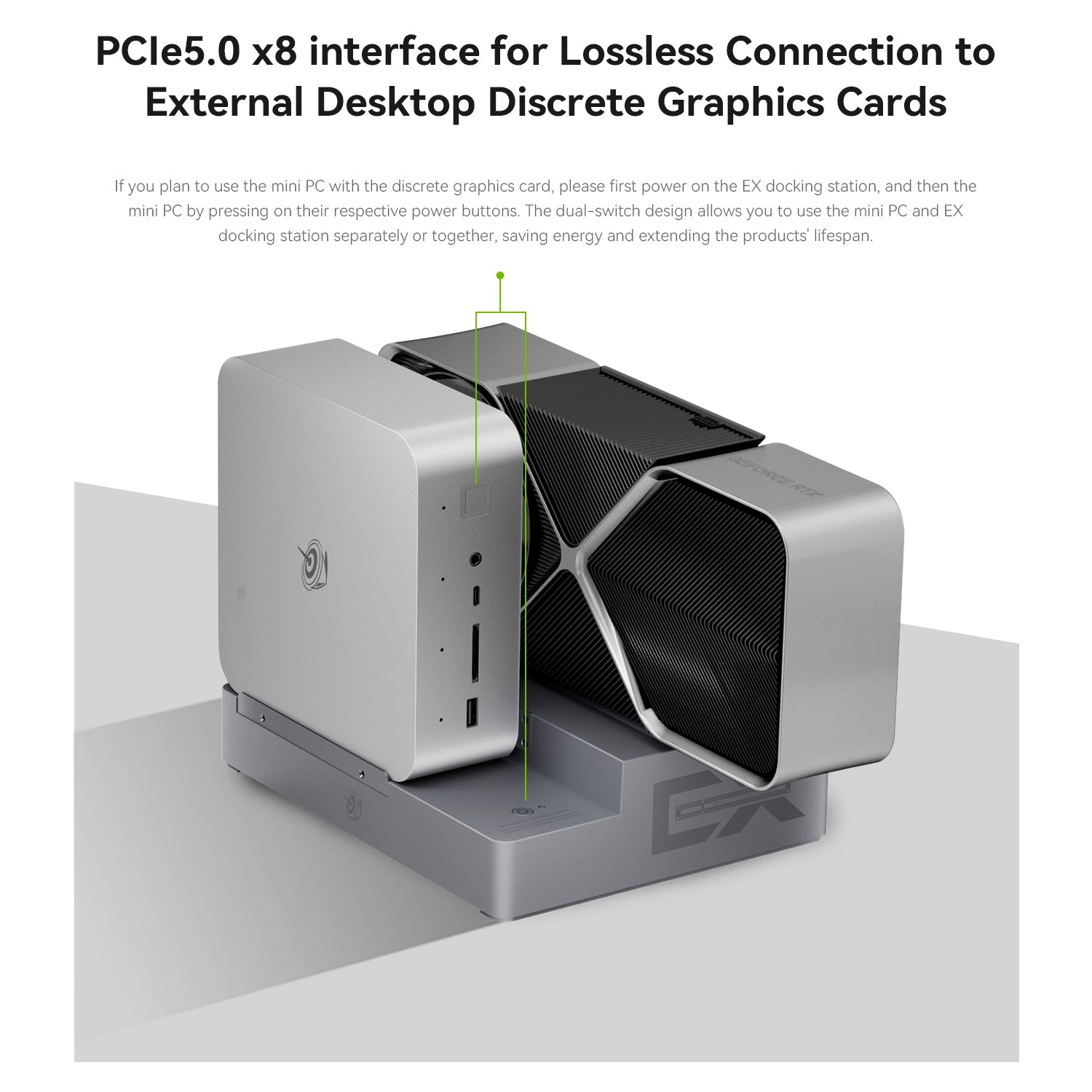

  • 🏆【PCIe x8 Interface for Lossless Connection to External Desktop Graphics Cards】--- Featuring a PCIe x8 interface (delivering PCIe 5.0 speeds on GTi14 & 15, and PCIe 4.0 on GTi12 & 13) for a lossless connection to external desktop graphics cards. When using the mini PC with a discrete graphics card, please power on the EX docking station first, then turn on the mini PC using their respective power buttons. The dual-switch design allows you to operate the mini PC and EX docking station independently or together, saving energy and extending the products' lifespan.
  • 🏆【Dual chips with turbo-charged performance】--- Hardware Upgrade: The addition of two PCle 5.0 signal enhancement chips ensures maximum performance, delivering seamless support for NVIDIA RTX 50 series and AMD RX 9000 series graphics cards.
  • 🏆【Enhanced Transmission】---EX Pro has stronger and more stable signals, with theoretical speeds reaching up to 256 GT/s.
  • 🏆【Built-in 600W Power Supply Unit】---Powers the graphics card without requiring additional external power sources, ensuring stable power supply, and supporting up to the Nvidia RTX 50- series graphics cards.
  • 🏆【Open Cooling Design】---Minimalist design, easy installation, and excellent heat dissipation.
  • 🏆【Abundant Expandable Choices】--- EX Pro Docking Station also supports M.2 2280 PCIe 4.0 x1 SSD, Wi-Fi Module and External Antennas.
  • 🏆【Notice】--- The docking station features two 8-pin power connectors. If your graphics card requires 3x 8-pin connectors, you may need an 8-pin to dual 8-pin adapter cable. If your graphics card uses a 16pin port, you may need a 2x8pin to 16pin adapter cable.

Free Shipping

30-Day Risk-Free Trial

3 Year Warranty

Features

Specs

Reviews

Beelink Multi-Functional EX Pro Docking Station

€159,00

Beelink Multi-Functional EX Pro Docking Station

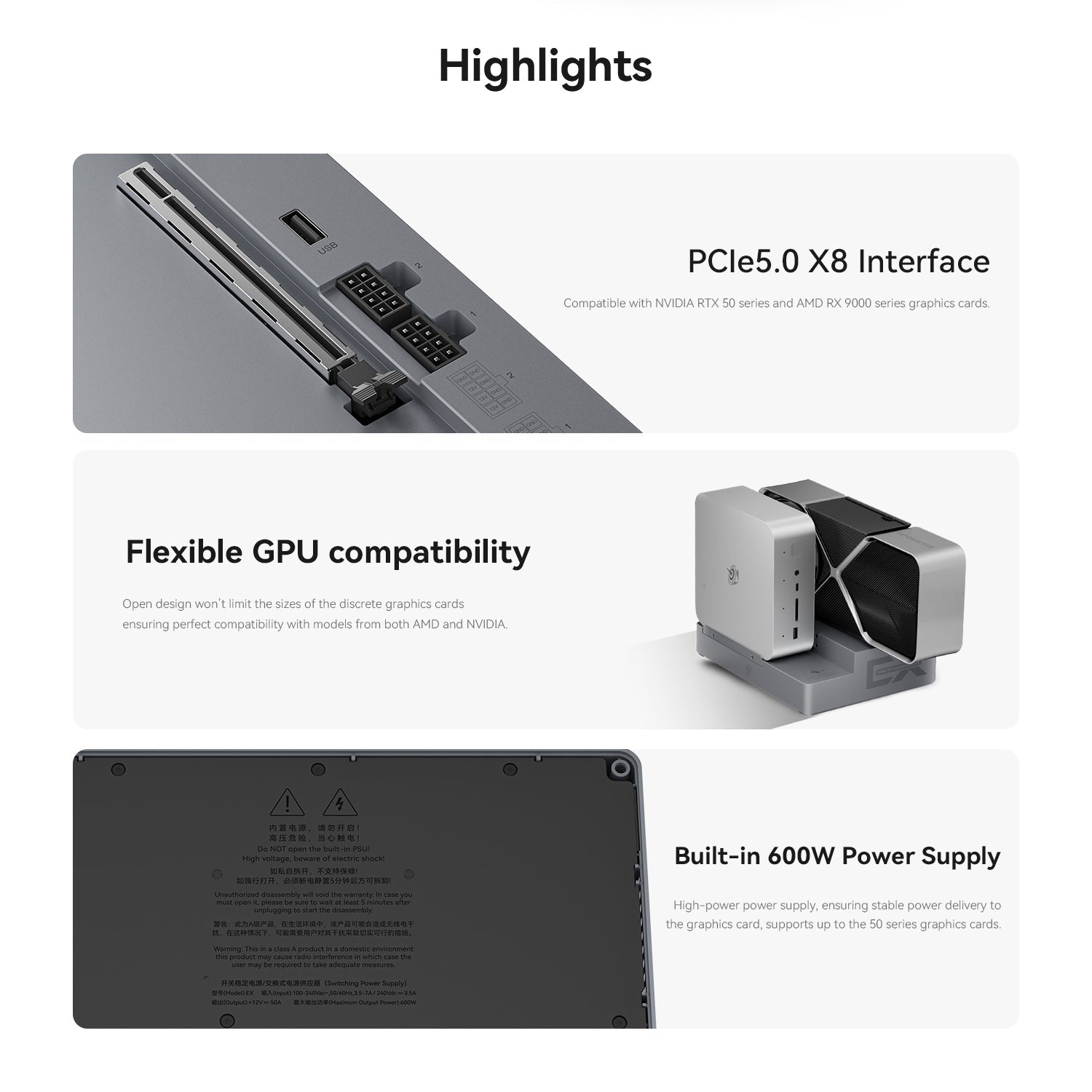

Multi-Functional

Multi-Functional

600W

Built-in 600W PSU

PCIe5.0 x8 interface

Lossless connection with GPUs

SSD support

M.2 2280 PCle 4.0 x1 slot

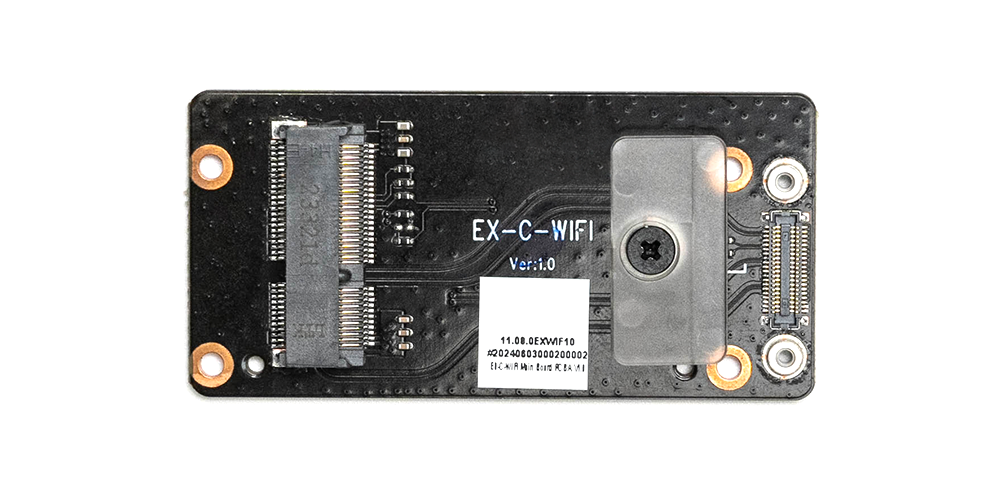

Wi-Fi Module support

The expanded WiFimodule

External antenna port

External Antennas support

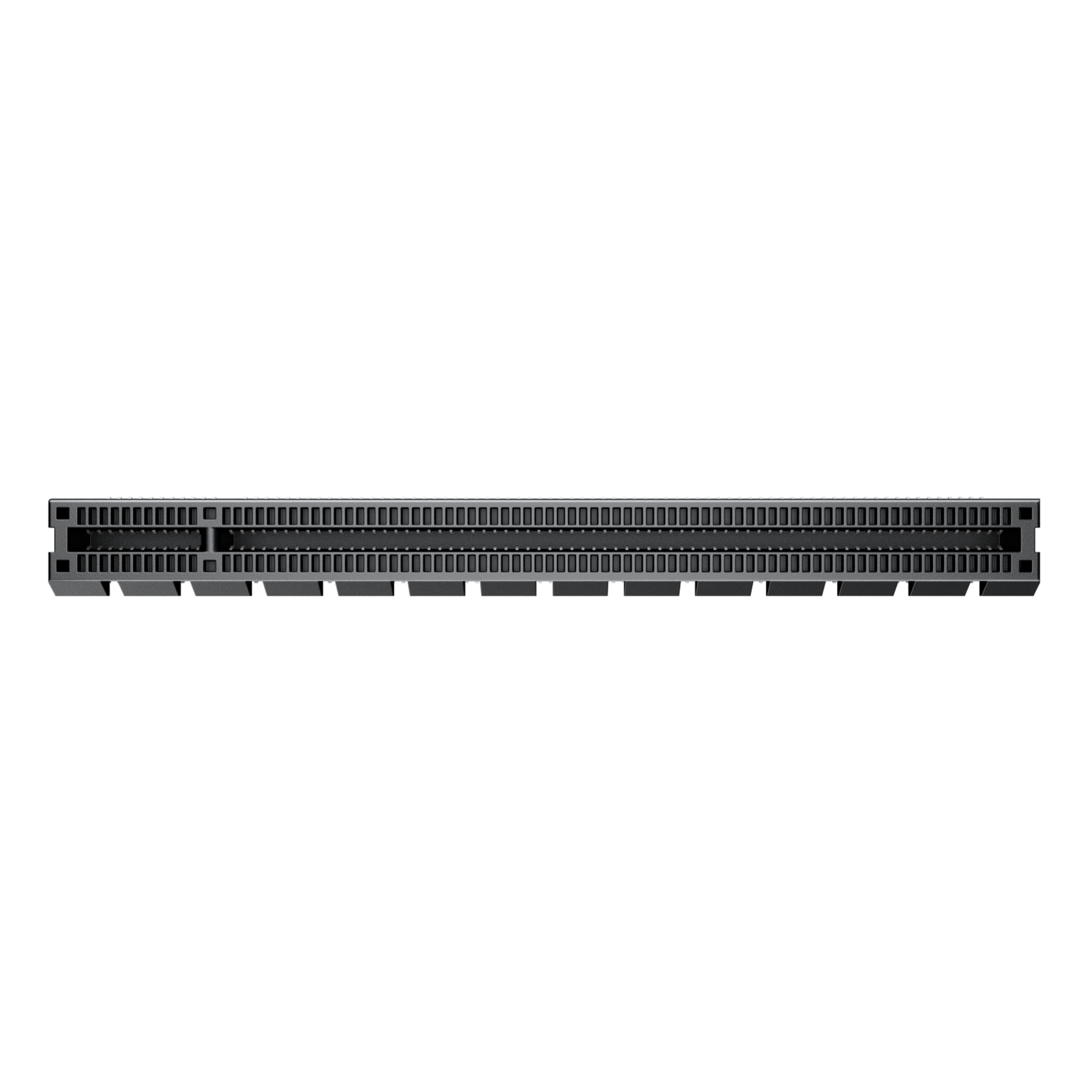

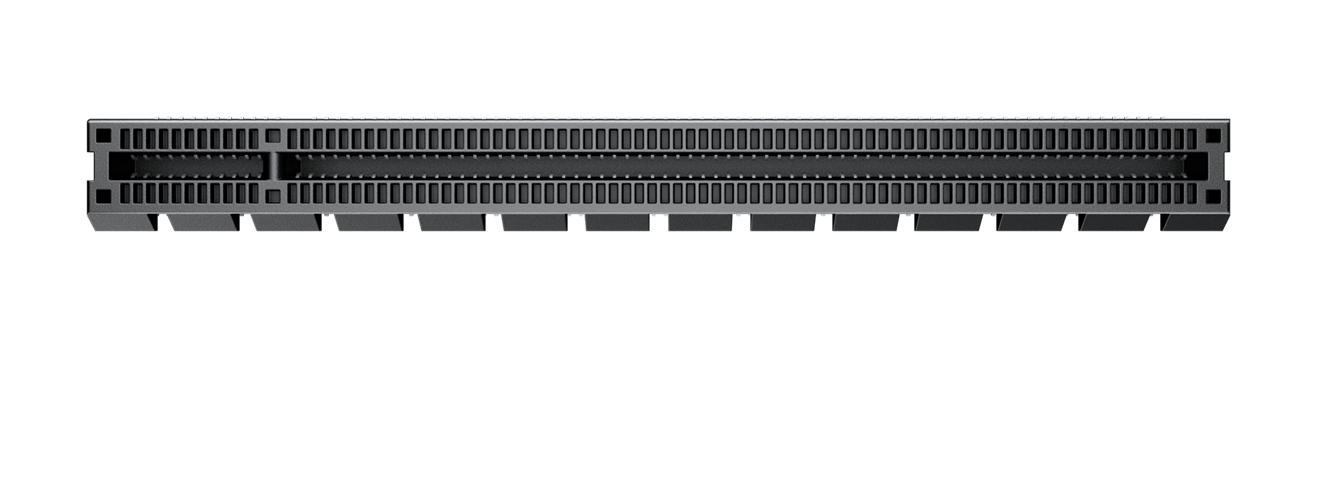

PCIe5.0 x8 interface

PCIe5.0 x8 interface

Lossless connection with external desktop GPUs.
Support for NVIDIA RTX 50 series and AMD RX 9000 series graphics cards

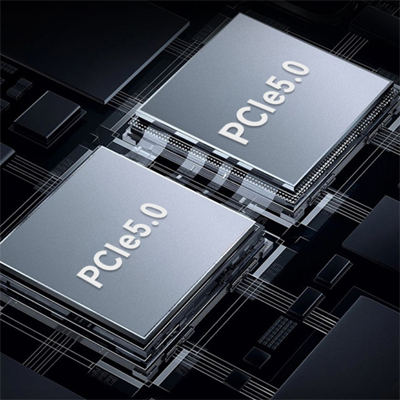

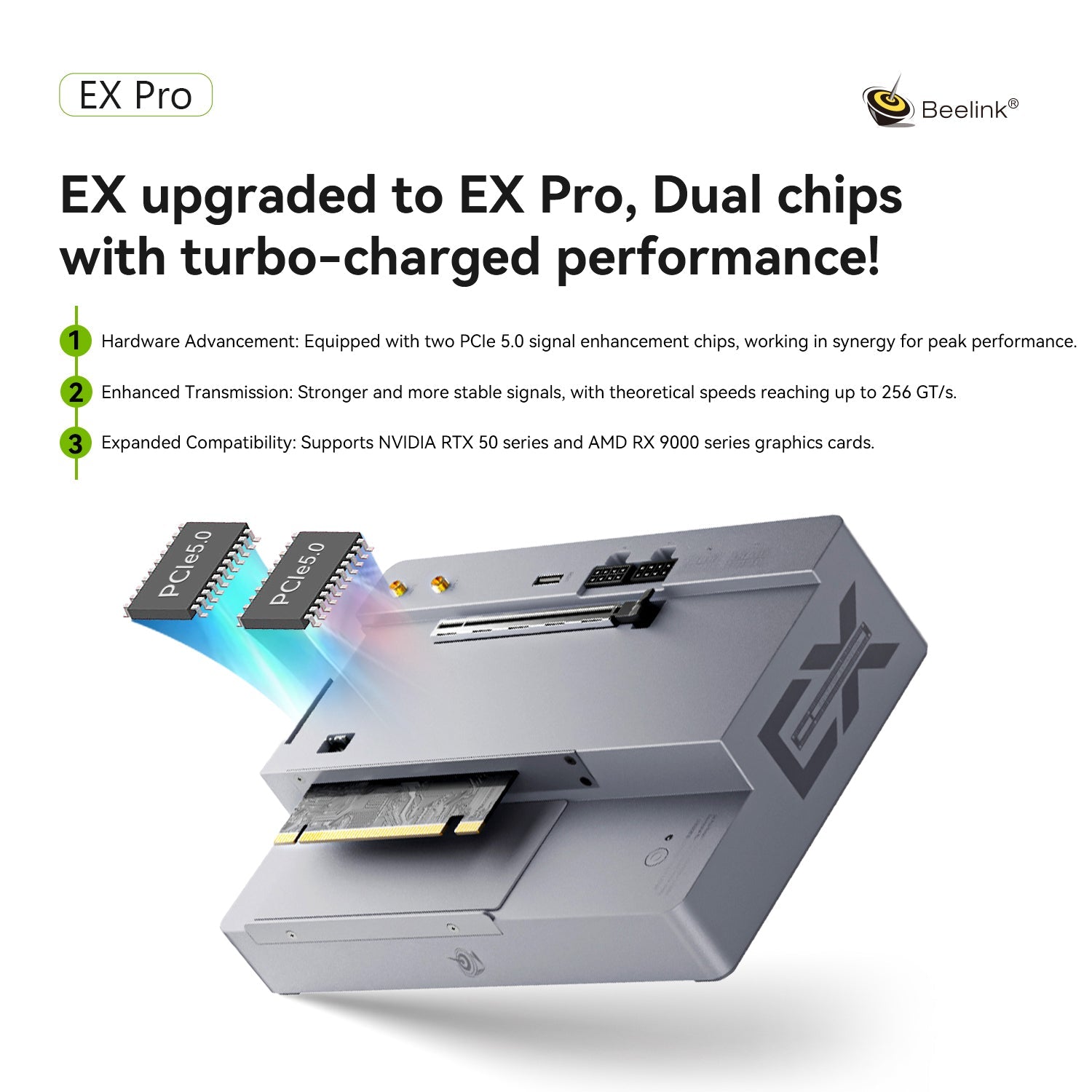

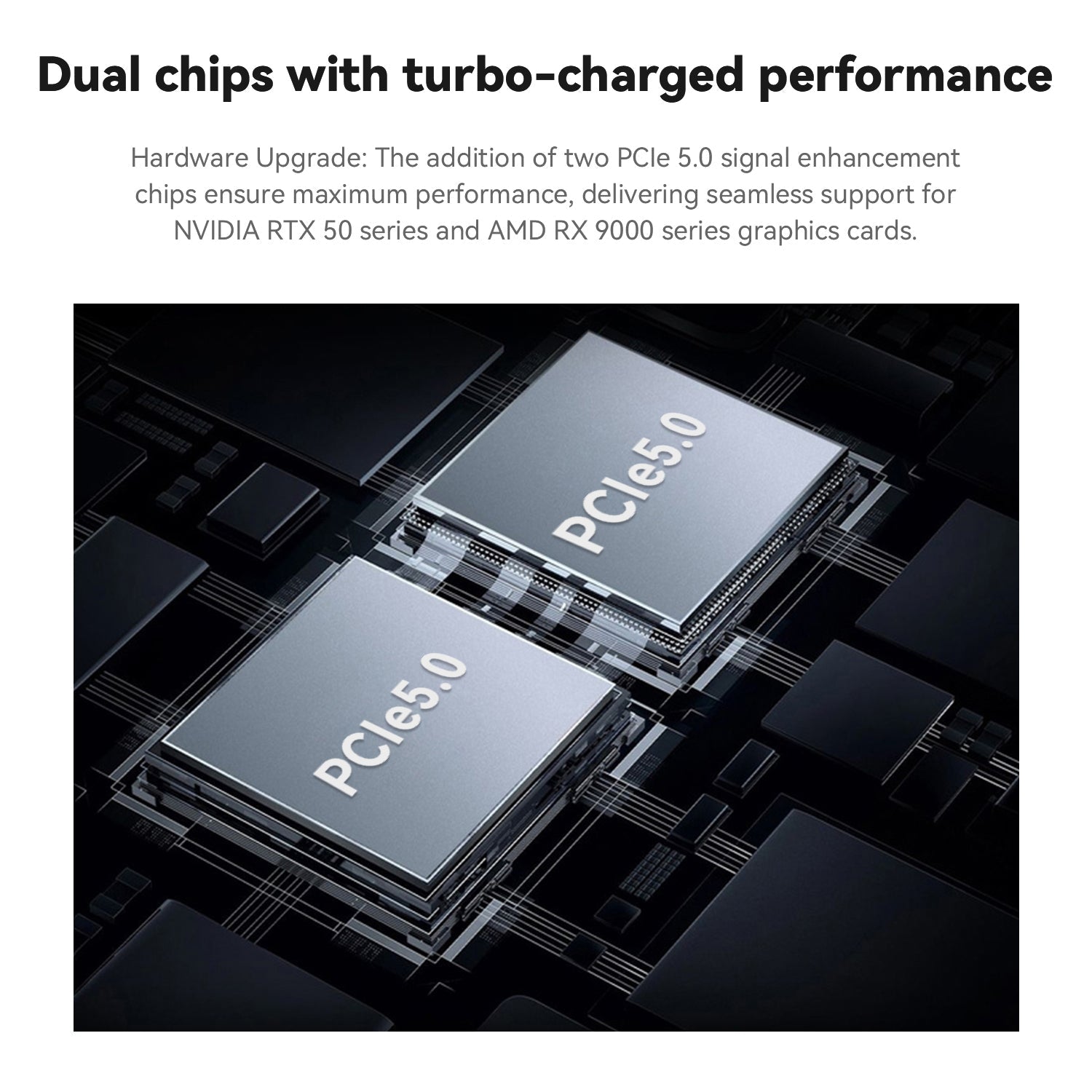

Dual chips with turbo-charged performance

Hardware Upgrade: The addition of two PCle 5.0 signal enhancement chips ensure maximum performance, delivering seamless support for NVIDIA RTX 50 series and AMD RX 9000 series graphics cards.

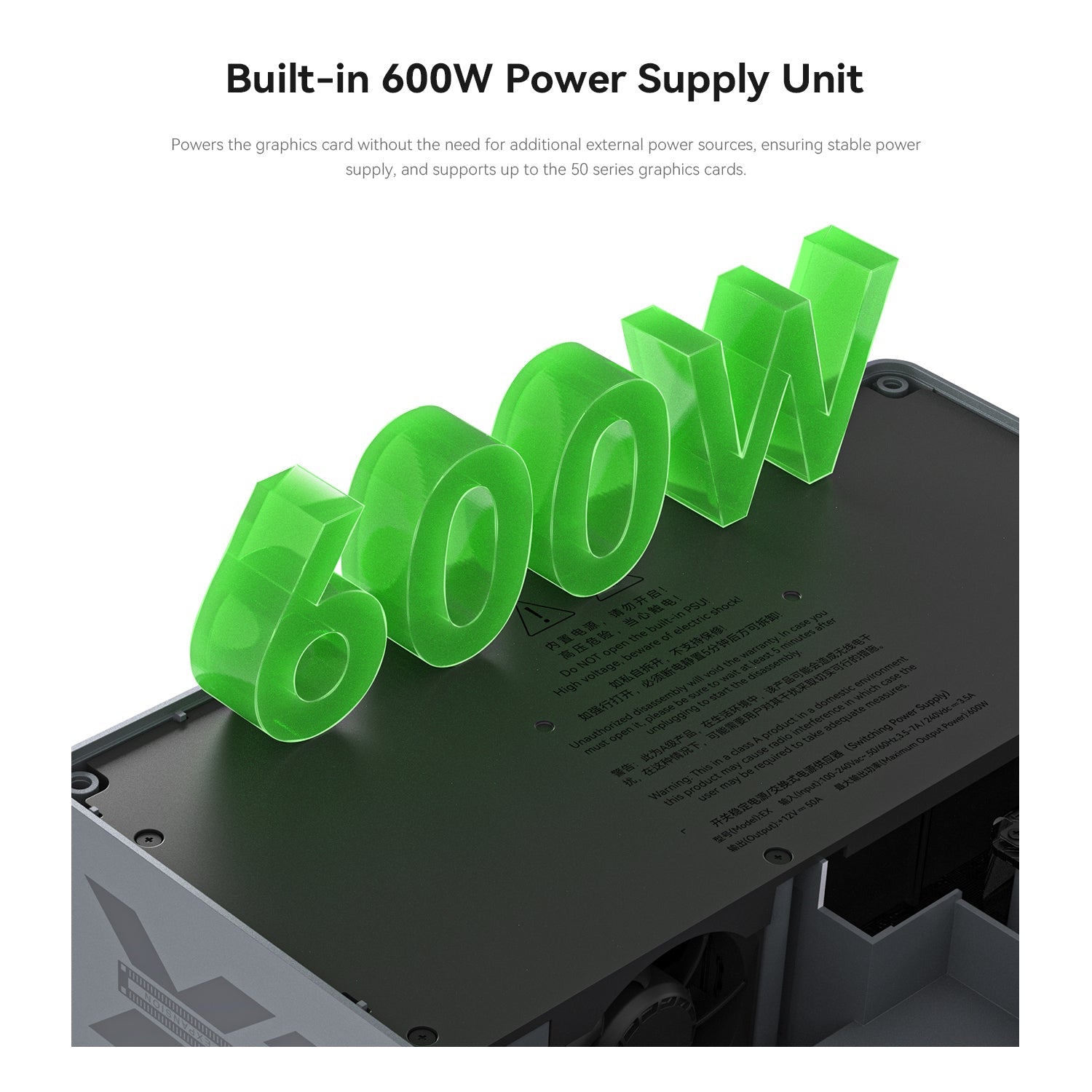

Built-in 600W Power Supply Unit

Powers the graphics card without the need for additional external power sources, ensuring stable power supply, and supports up to the 50 series graphics cards.

Built-in 600W Power Supply Unit

Powers the graphics card without the need for additional external power sources, ensuring stable power supply, and supports up to the 50 series graphics cards.

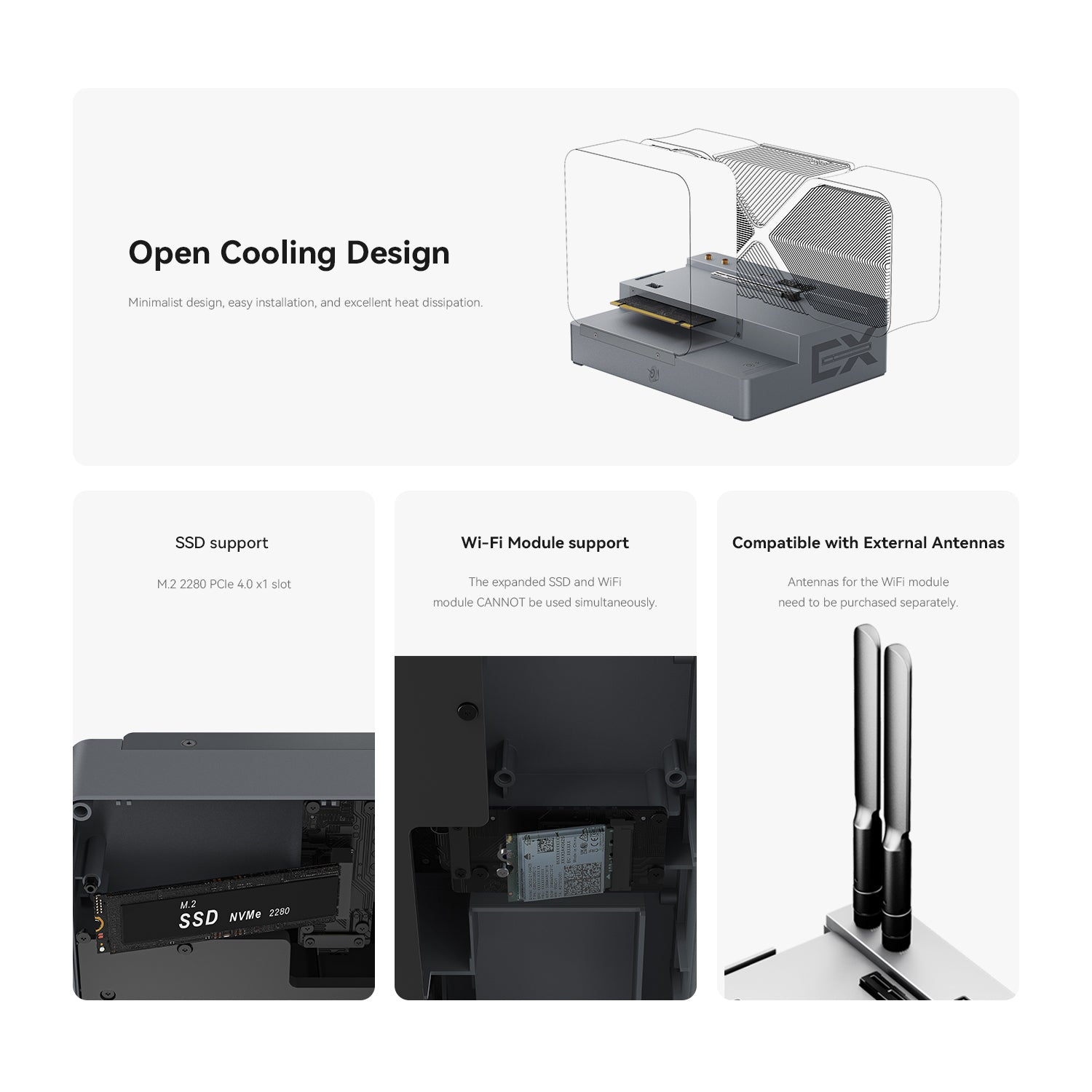

Open Cooling Design

Minimalist design, easy installation, and excellent heat dissipation.

Open Cooling Design

Minimalist design, easy installation, and excellent heat dissipation.

Expandable Choices

SSD、Wi-Fi Module and External Antennas

Expandable Choices

SSD、Wi-Fi Module and External Antennas

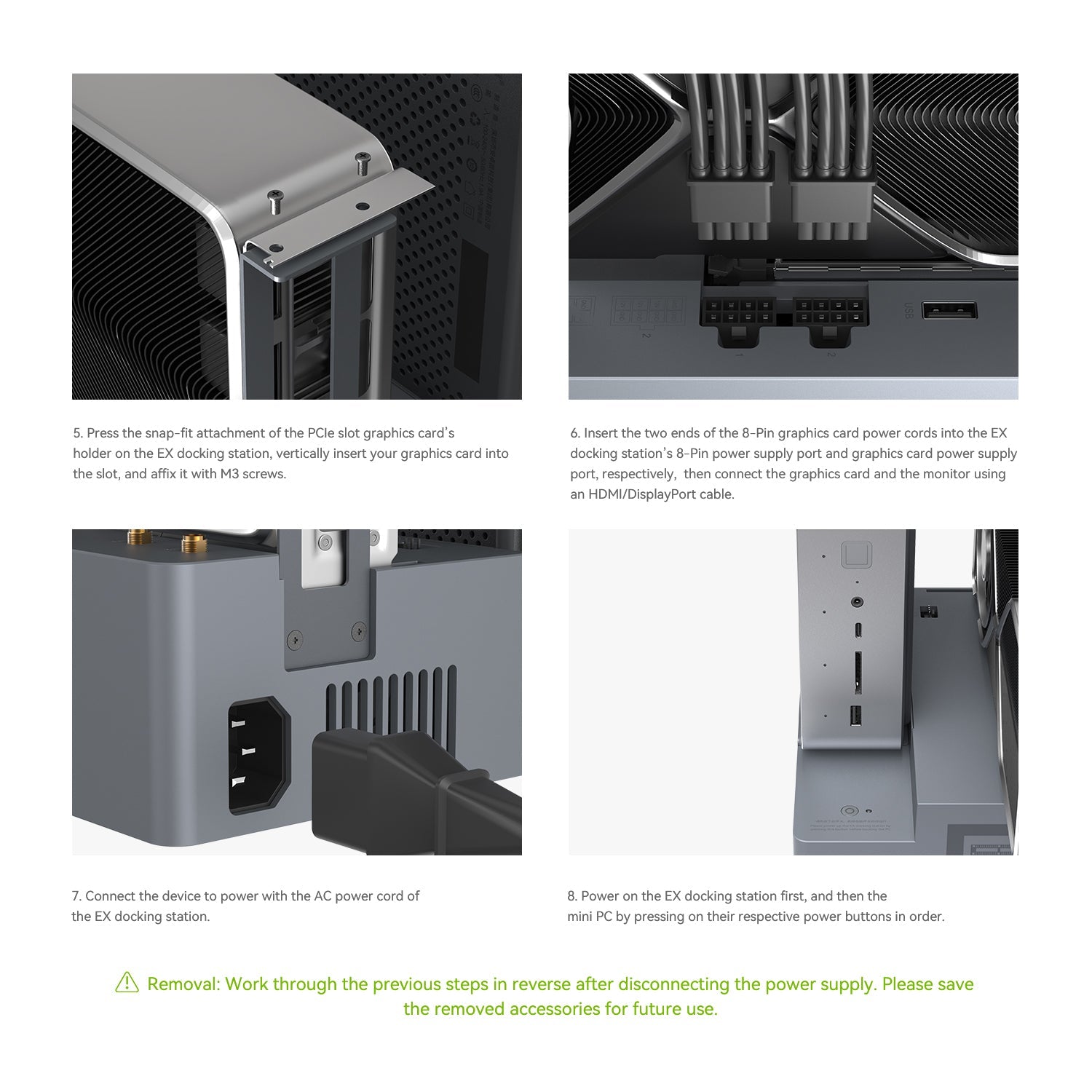

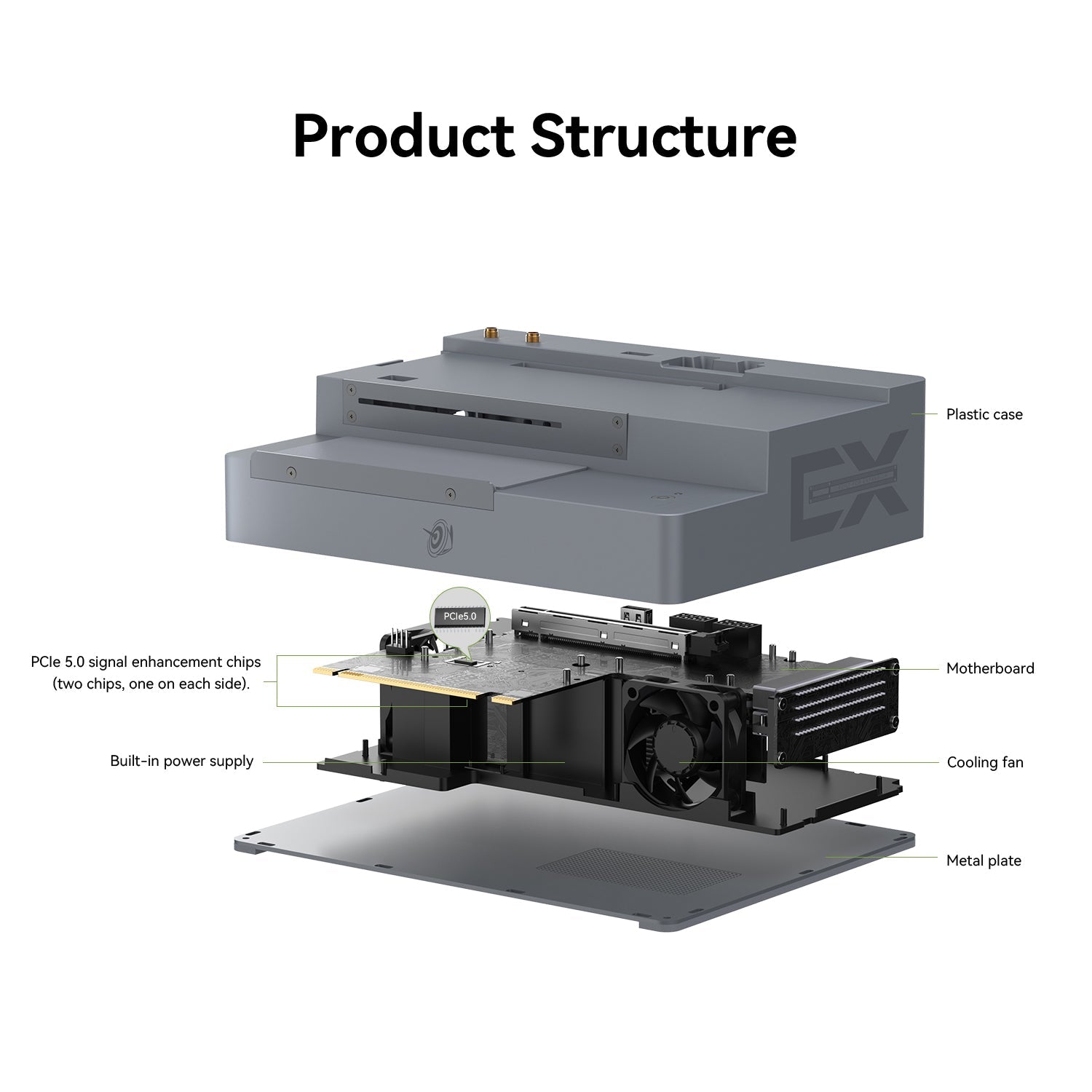

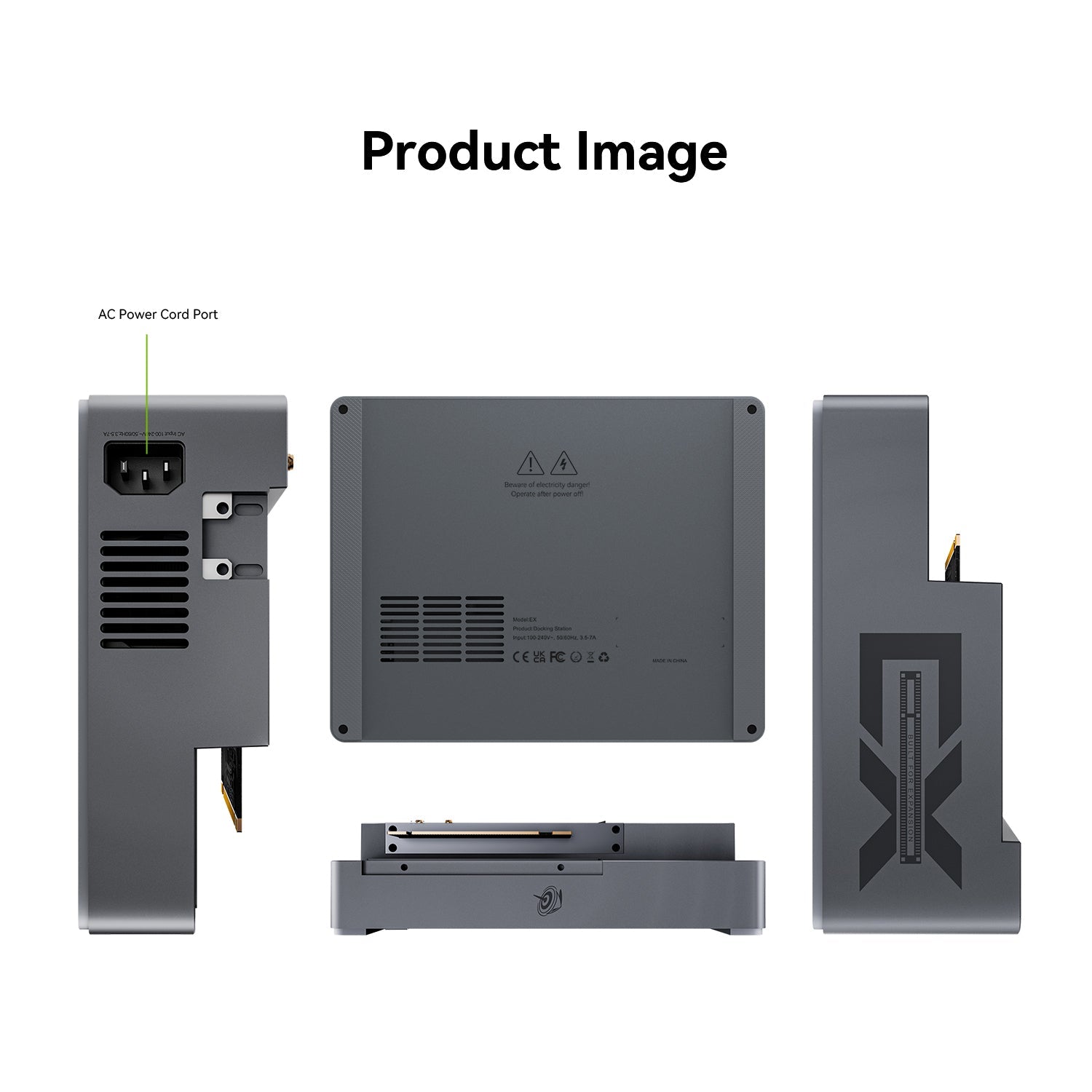

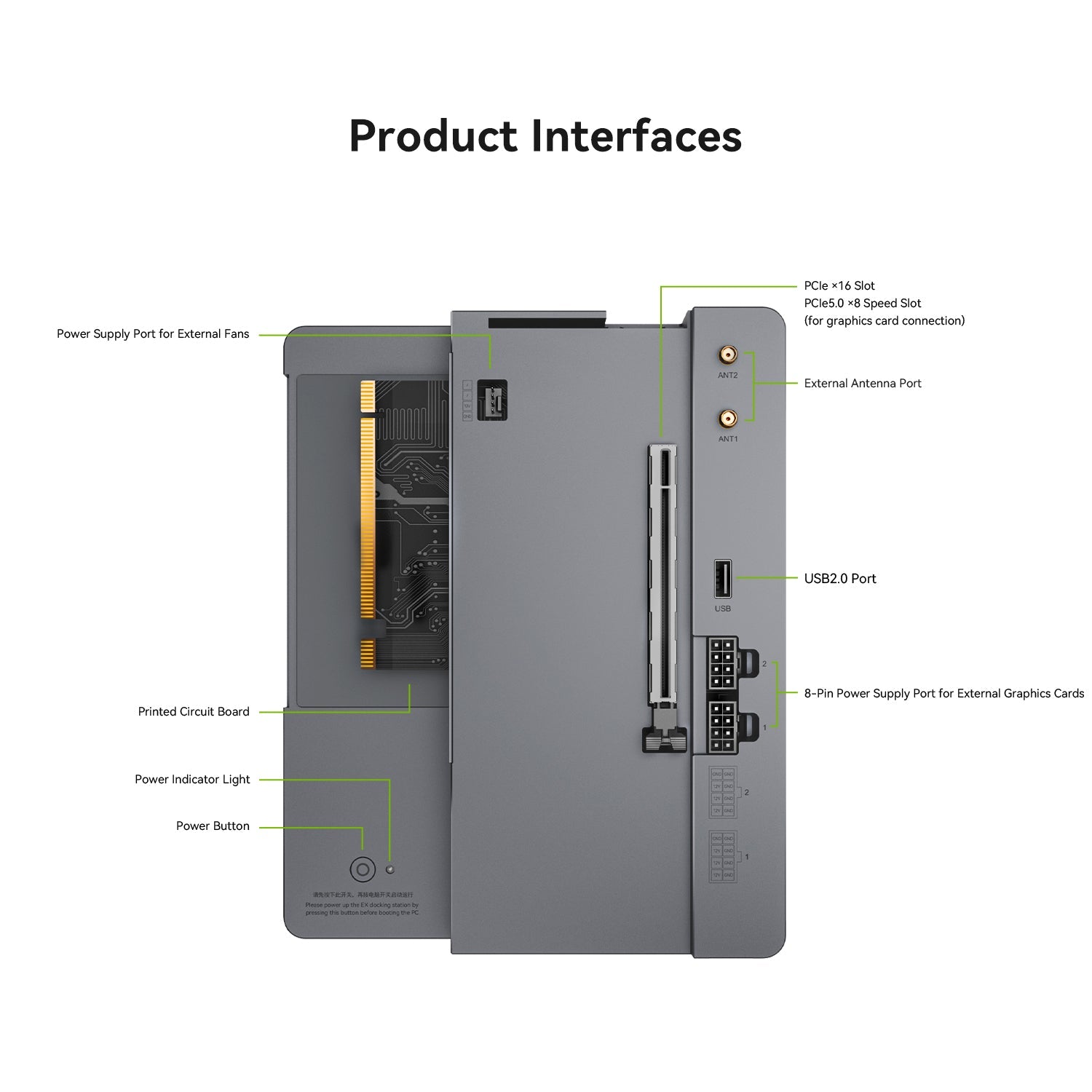

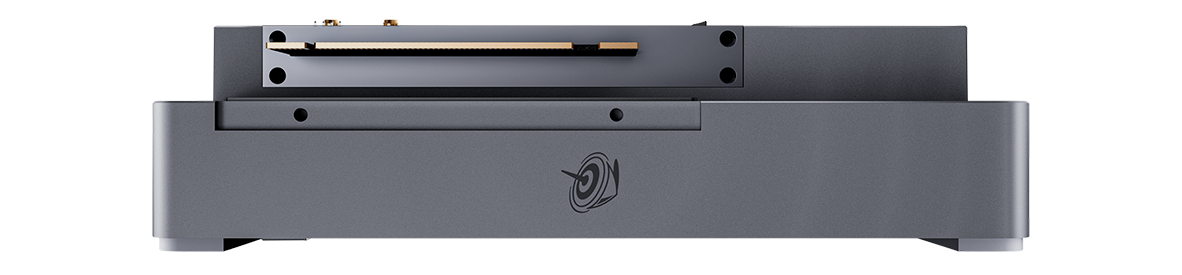

Product Structure

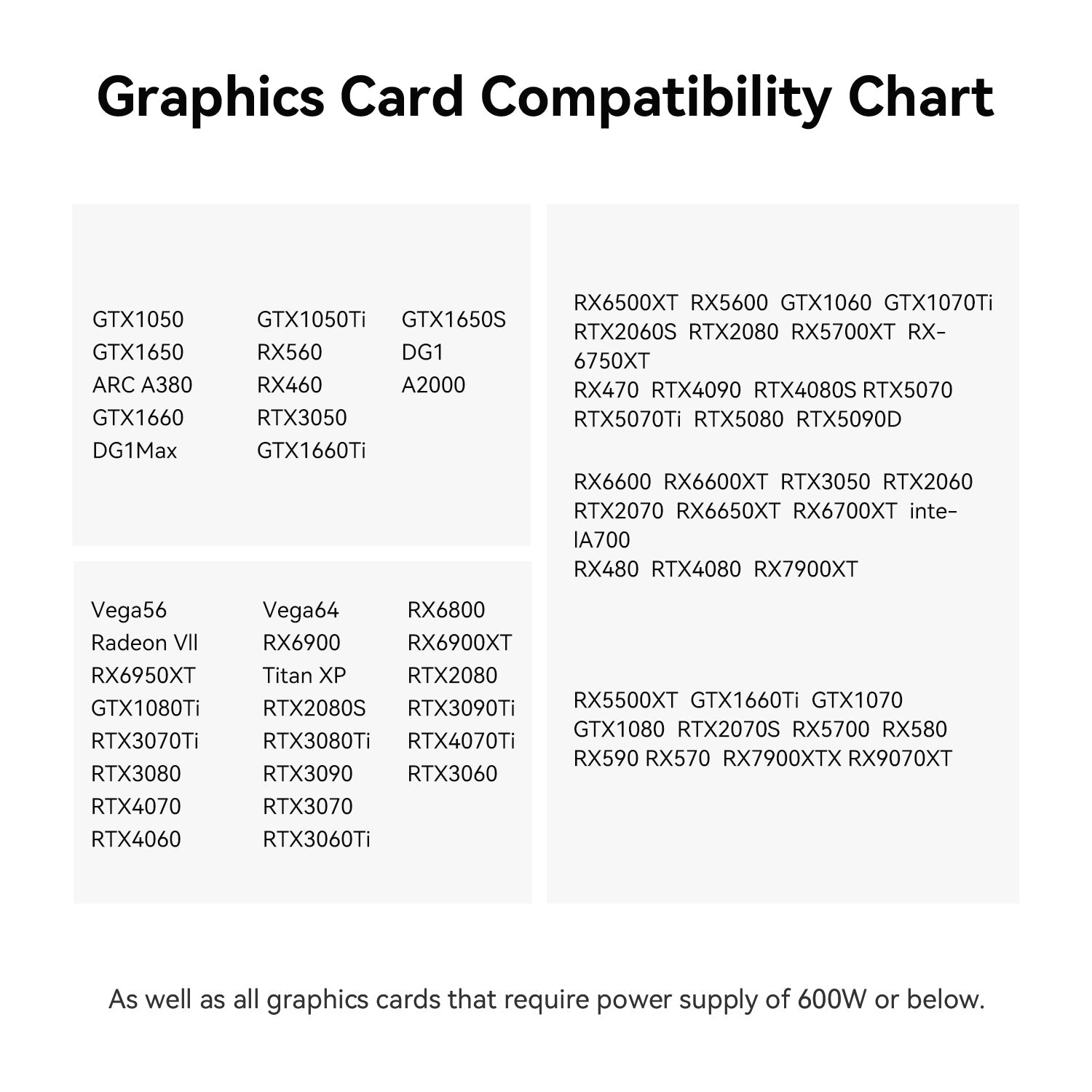

Graphics Card Compatibility Chart

As well as all graphics cards that require power supply of 600W or below.

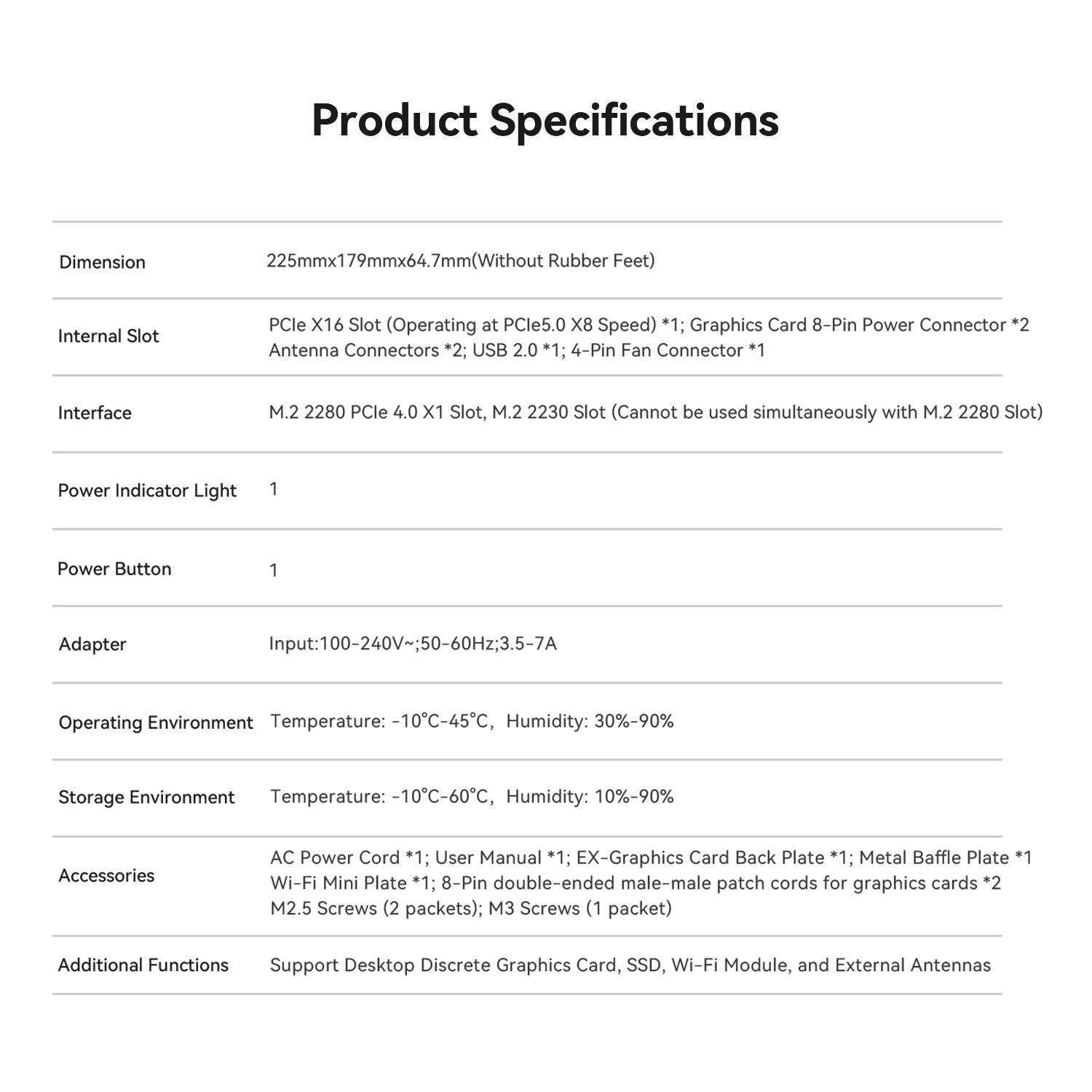

Specifications

ADAPTER

Input:100-240V~
50-60Hz;3.5-7A

COLOR

Space Gray

ADDTIONAL FUCTION

Support Desktop Discrete Graphics Card, SSD, Wi-Fi Module, and External Antennas

USER'S MANUAL

EX Pro Docking Station User's Manual

Download

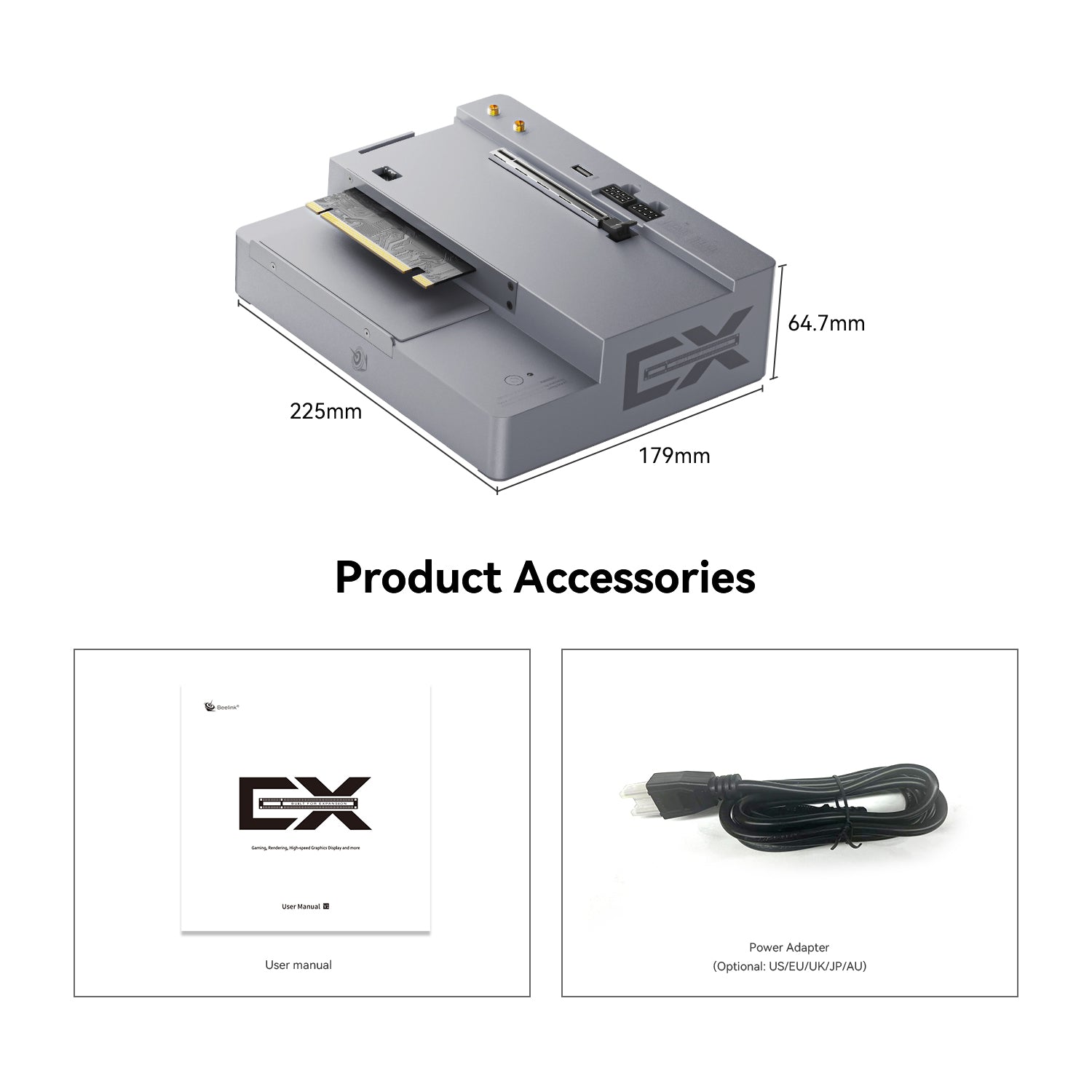

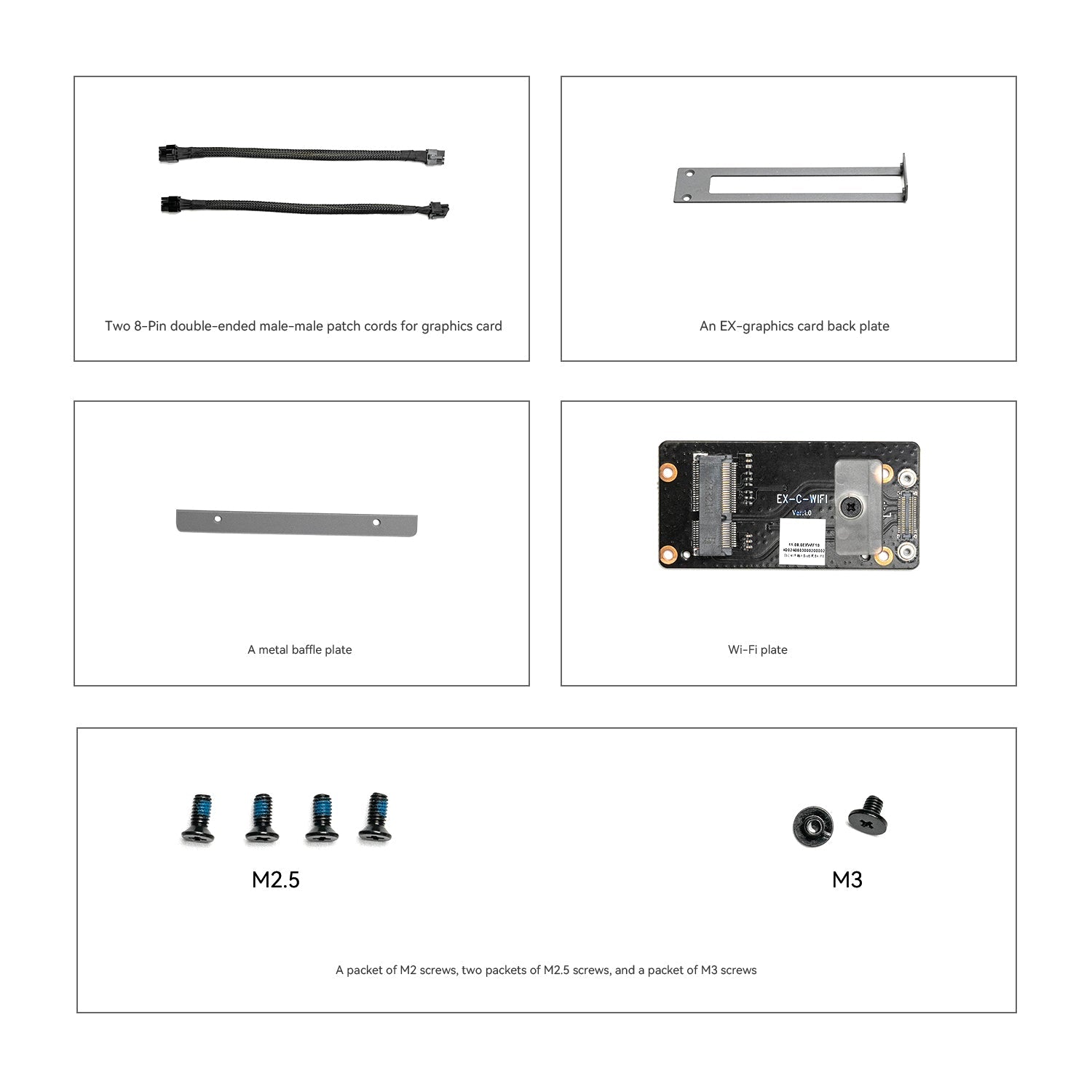

What's In The Box

1. EX Docking Station
2. User's Manual

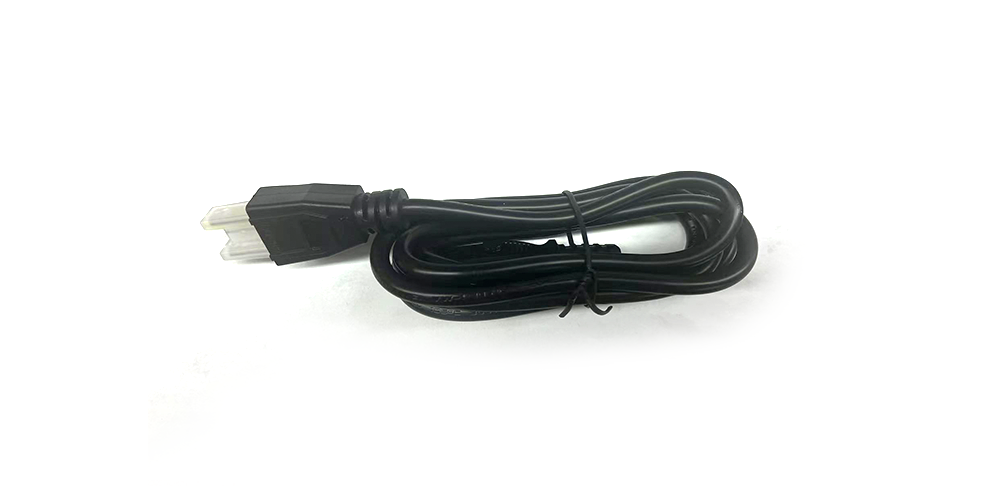

3. Power Adapter (Optional:US/EU/UK/AU/JP)

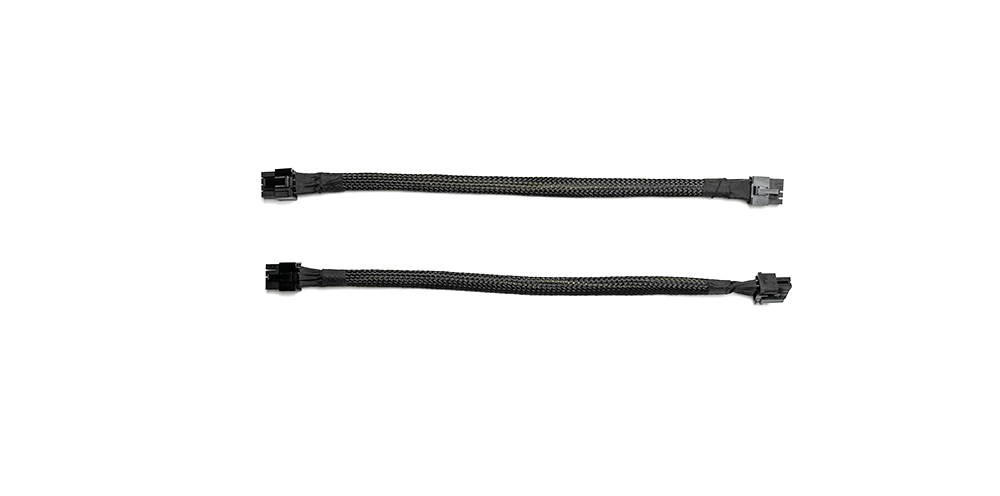

4. Two 8-Pin double-ended male-male patch cords for graphics card

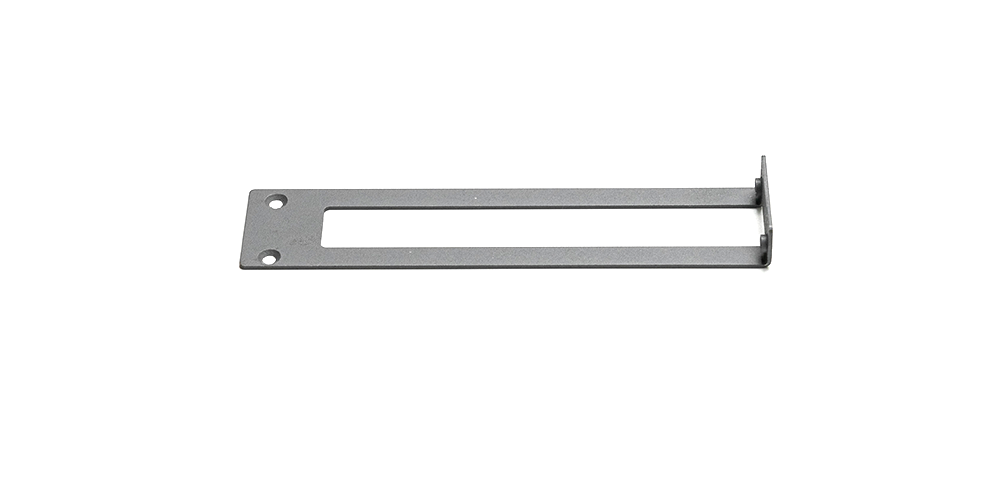

5. An EX-graphics card back plate
6. A metal baffle plate
7. Wi-Fi plate

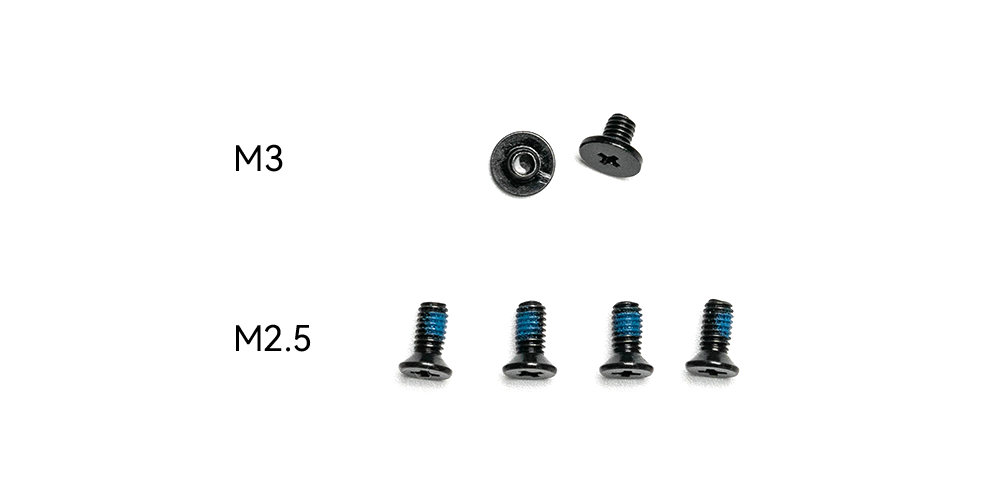

8. A packet of M2 screws, two packets of M2.5 screws, and a packet of M3 screws
1. EX Docking Station
2. User's Manual
3. Power Adapter (Optional:US/EU/UK/AU/JP)
4. Two 8-Pin double-ended male-male patch cords for graphics card
5. An EX-graphics card back plate

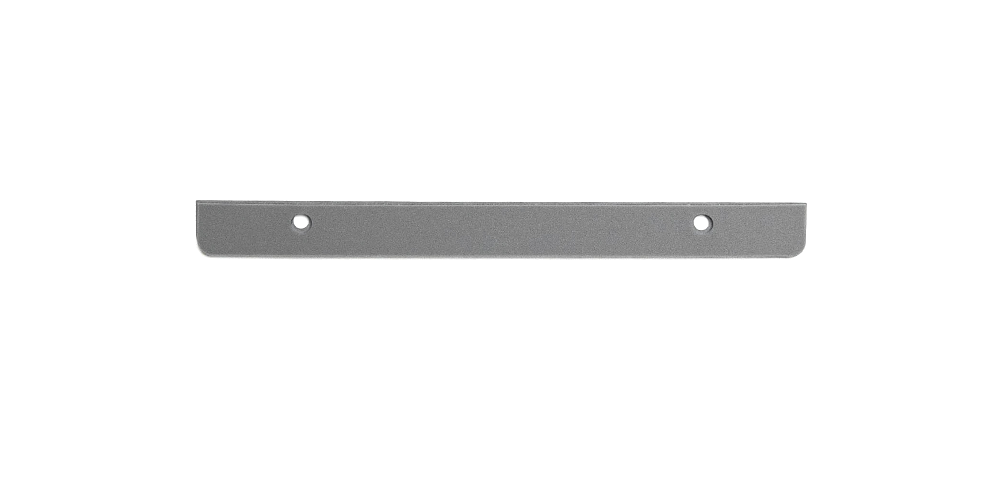

6. A metal baffle plate
7. Wi-Fi plate
8. A packet of M2 screws, two packets of M2.5 screws, and a packet of M3 screws
